Source 2309+454
Source information
Name:
2309+454
Other names
ICRF3 Category
Not Defining
Links
Aladin Lite (Optical image)
Simbad
NED
OPAR (Position time series)
MOJAVE
Other names
Gaia DR1 1941141358834390400
Gaia DR3 1941141358834390400
ICRF J231147.4+454356
IERS B2309+454
IVS B2309+454
NVSS J231147+454356
OHIO Z 416
OZ 416
QSO B2309+454
QSO J2311+4543
VCS1 J2311+4543
Gaia DR3 1941141358834390400
ICRF J231147.4+454356
IERS B2309+454
IVS B2309+454
NVSS J231147+454356
OHIO Z 416
OZ 416
QSO B2309+454
QSO J2311+4543
VCS1 J2311+4543
Coordinates (RA Dec.)
23:11:47.40897544 45:43:56.0164210
or
347.94753739767 45.732226783611
[ Coordinates from "ICRF3 S/X catalog" ]
23:11:47.40897544 45:43:56.0164210
or
347.94753739767 45.732226783611
Skymap
[ Coordinates from "ICRF3 S/X catalog" ]
ICRF3 Category
Not Defining
Links
Aladin Lite (Optical image)
Simbad
NED
OPAR (Position time series)
MOJAVE
Data
Images
Graphs
Data
Tools
Download Manager for 2309+454
BL115A
(2003-05-22)
K-band
Additional information
Download files for 2309+454

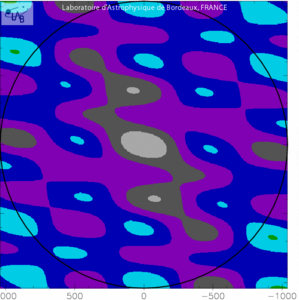

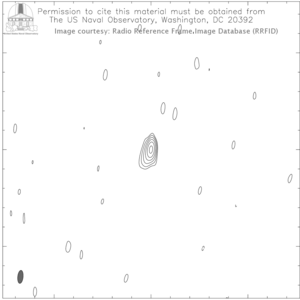

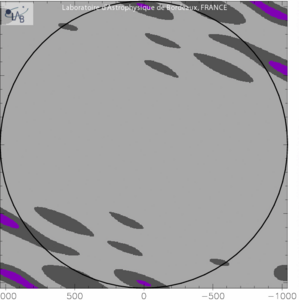

BL115A (2003-05-22), K-band
| Flux (Jy) | Structure Index | Compactness | Map quality |
|---|---|---|---|
| 0.32 | 1.98 | 0.71 | NA |
BL115B
(2003-09-13)
Q-band
Additional information
Download files for 2309+454

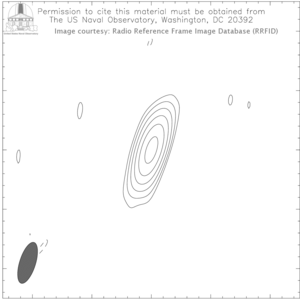

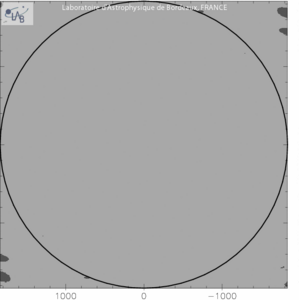

BL115B (2003-09-13), Q-band
| Flux (Jy) | Structure Index | Compactness | Map quality |
|---|---|---|---|
| 0.6 | 1.08 | 0.6 | NA |
K-band
Additional information
Download files for 2309+454

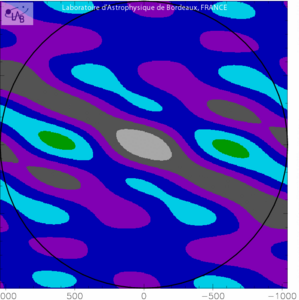

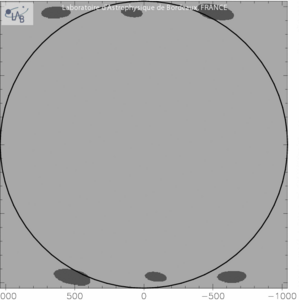

BL115B (2003-09-13), K-band
| Flux (Jy) | Structure Index | Compactness | Map quality |
|---|---|---|---|
| 0.34 | 1.51 | 0.68 | NA |
BL122A
(2004-12-14)
K-band
Additional information
Download files for 2309+454

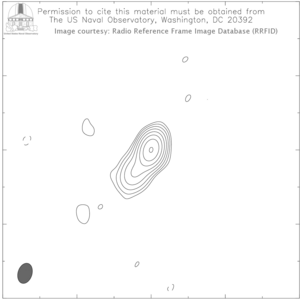

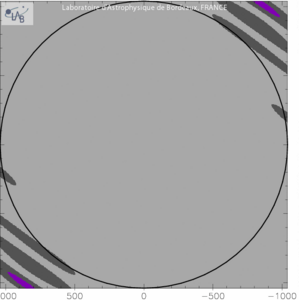

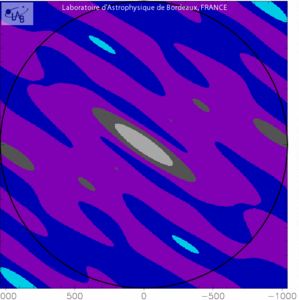

BL122A (2004-12-14), K-band
| Flux (Jy) | Structure Index | Compactness | Map quality |
|---|---|---|---|
| 0.48 | 1.6 | 0.72 | NA |
BL122B
(2005-08-26)
K-band
Additional information
Download files for 2309+454

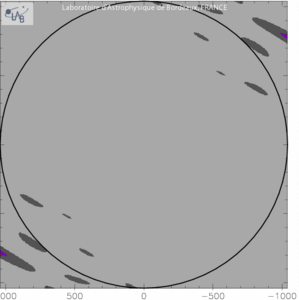

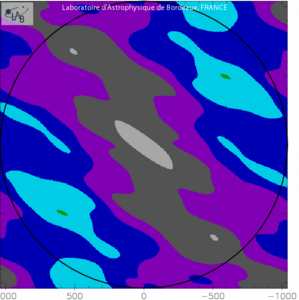

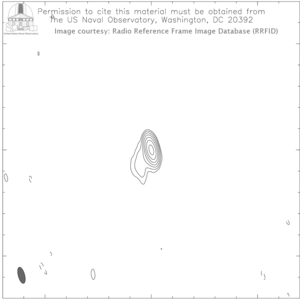

BL122B (2005-08-26), K-band
| Flux (Jy) | Structure Index | Compactness | Map quality |
|---|---|---|---|
| 0.39 | 1.23 | 0.72 | NA |
X-band
Additional information
Download files for 2309+454

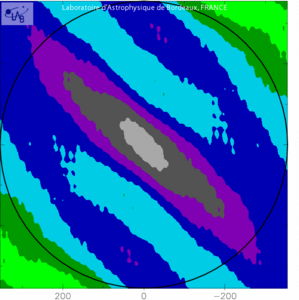

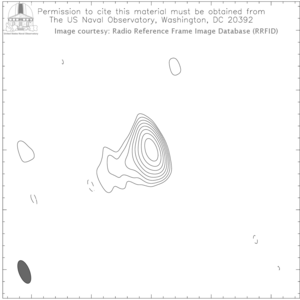

BL122B (2005-08-26), X-band
| Flux (Jy) | Structure Index | Compactness | Map quality |
|---|---|---|---|
| 0.52 | 2.82 | 0.62 | NA |
BL122C
(2006-07-09)
K-band
Additional information
Download files for 2309+454

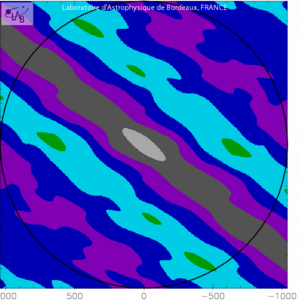

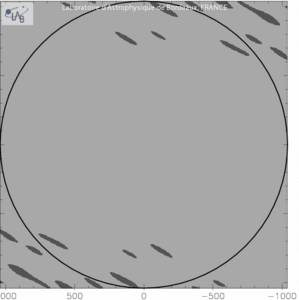

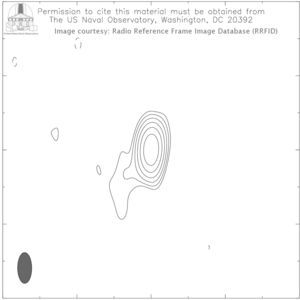

BL122C (2006-07-09), K-band
| Flux (Jy) | Structure Index | Compactness | Map quality |
|---|---|---|---|
| 0.37 | 1.46 | 0.67 | NA |
BL122D
(2007-03-30)
K-band
Additional information
Download files for 2309+454

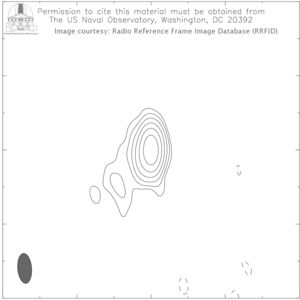

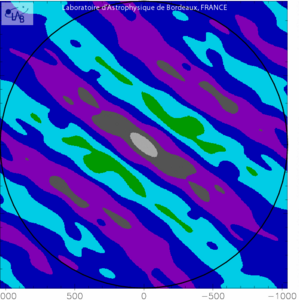

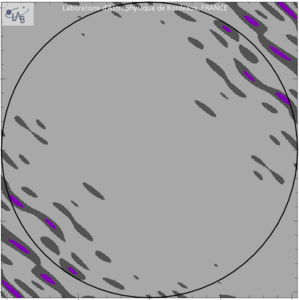

BL122D (2007-03-30), K-band
| Flux (Jy) | Structure Index | Compactness | Map quality |
|---|---|---|---|
| 0.26 | 1.89 | 0.65 | NA |
RDV72
(2008-12-17)
X-band
Additional information
Download files for 2309+454

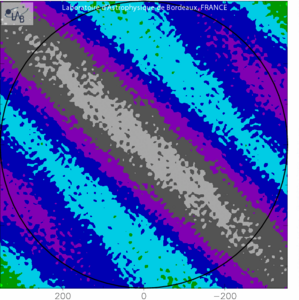

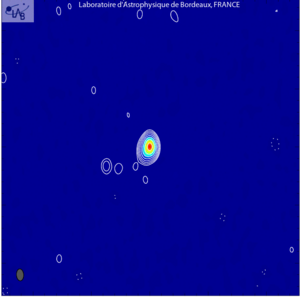

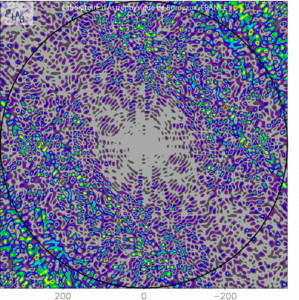

RDV72 (2008-12-17), X-band
| Flux (Jy) | Structure Index | Compactness | Map quality |
|---|---|---|---|
| 0.22 | 3.27 | 0.68 | 989.55 |
S-band
Additional information
Download files for 2309+454

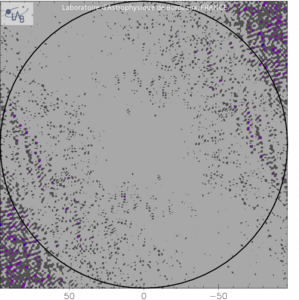

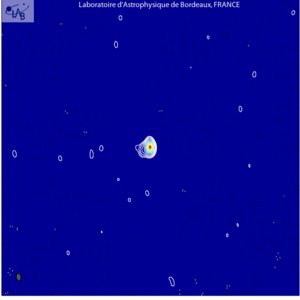

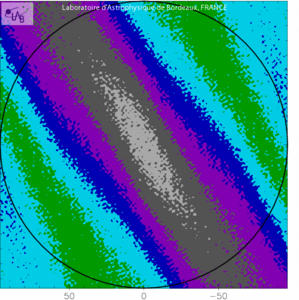

RDV72 (2008-12-17), S-band
| Flux (Jy) | Structure Index | Compactness | Map quality |
|---|---|---|---|
| 0.28 | 2.04 | 0.64 | 1007.34 |
RDV74
(2009-04-21)
X-band
Additional information
Download files for 2309+454

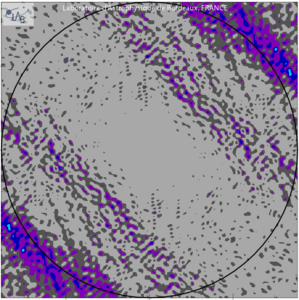

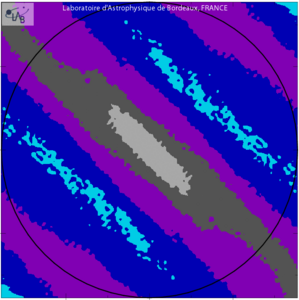

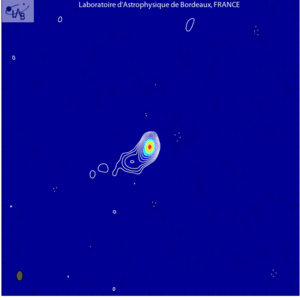

RDV74 (2009-04-21), X-band
| Flux (Jy) | Structure Index | Compactness | Map quality |
|---|---|---|---|
| 0.35 | 2.48 | 0.69 | 1497.74 |
S-band
Additional information
Download files for 2309+454

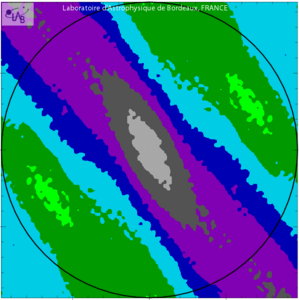

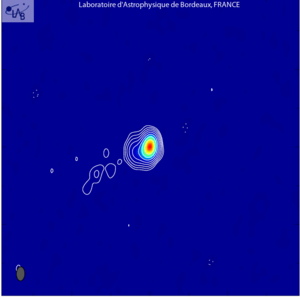

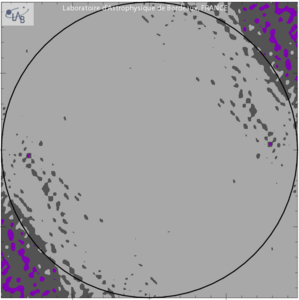

RDV74 (2009-04-21), S-band
| Flux (Jy) | Structure Index | Compactness | Map quality |
|---|---|---|---|
| 0.29 | 1.6 | 0.57 | 1316.37 |
RDV76
(2009-07-29)
X-band
Additional information
Download files for 2309+454

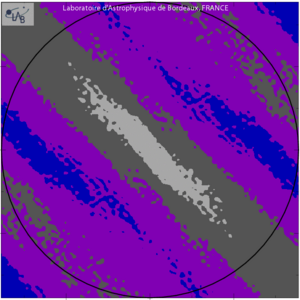

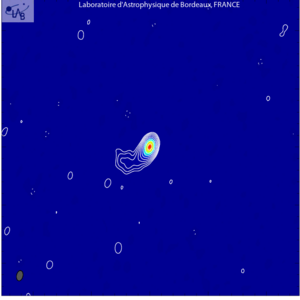

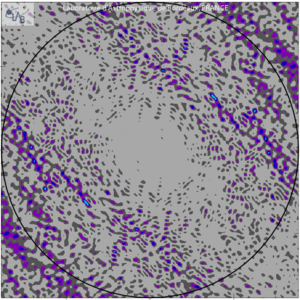

RDV76 (2009-07-29), X-band
| Flux (Jy) | Structure Index | Compactness | Map quality |
|---|---|---|---|
| 0.39 | 2.58 | 0.78 | 1588.3 |
S-band
Additional information
Download files for 2309+454

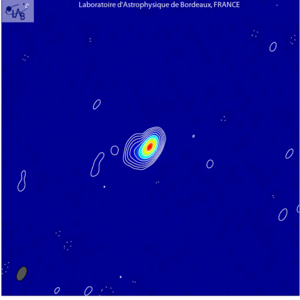

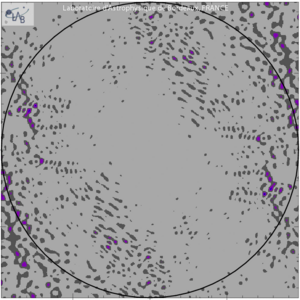

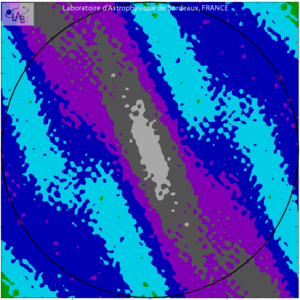

RDV76 (2009-07-29), S-band
| Flux (Jy) | Structure Index | Compactness | Map quality |
|---|---|---|---|
| 0.27 | 2.11 | 0.66 | 928.53 |
RDV77
(2009-10-07)
X-band
Additional information
Download files for 2309+454

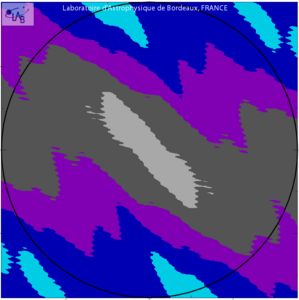

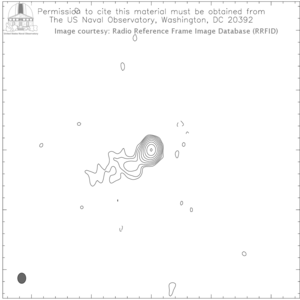

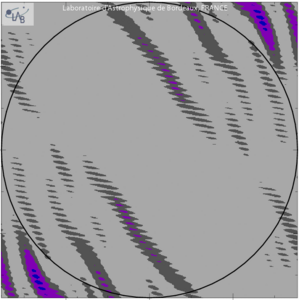

RDV77 (2009-10-07), X-band
| Flux (Jy) | Structure Index | Compactness | Map quality |
|---|---|---|---|
| 0.41 | 2.09 | 0.79 | NA |
S-band
Additional information
Download files for 2309+454

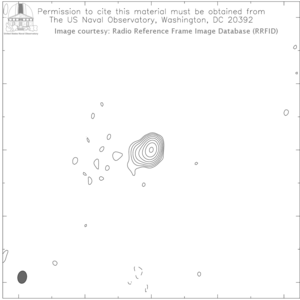

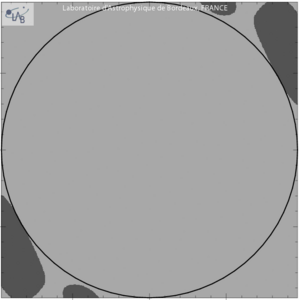

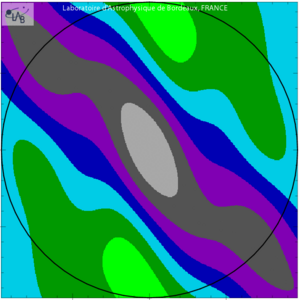

RDV77 (2009-10-07), S-band
| Flux (Jy) | Structure Index | Compactness | Map quality |
|---|---|---|---|
| 0.27 | 1.08 | 0.6 | NA |
RDV82
(2010-10-13)
X-band
Additional information
Download files for 2309+454

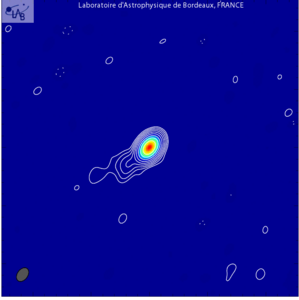

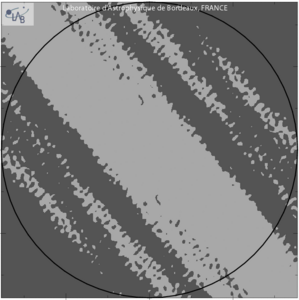

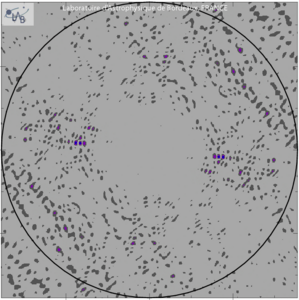

RDV82 (2010-10-13), X-band
| Flux (Jy) | Structure Index | Compactness | Map quality |
|---|---|---|---|
| 0.54 | 2.16 | 0.9 | 3002.07 |
S-band
Additional information
Download files for 2309+454

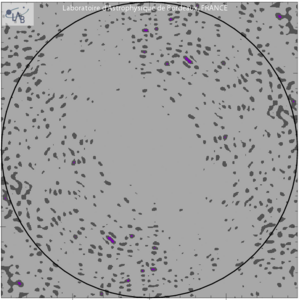

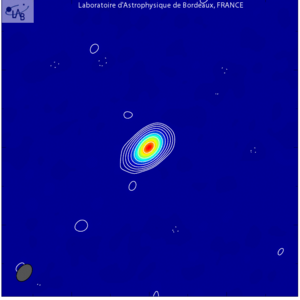

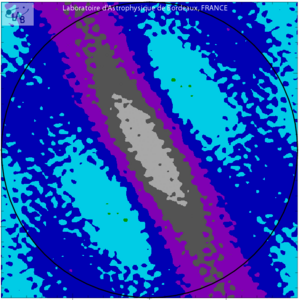

RDV82 (2010-10-13), S-band
| Flux (Jy) | Structure Index | Compactness | Map quality |
|---|---|---|---|
| 0.24 | 2.06 | 0.63 | 1172.03 |
RDV90
(2011-12-20)
X-band
Additional information
Download files for 2309+454

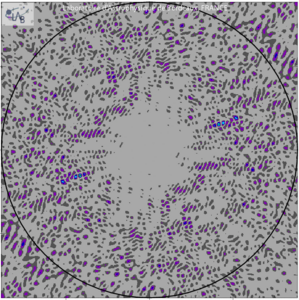

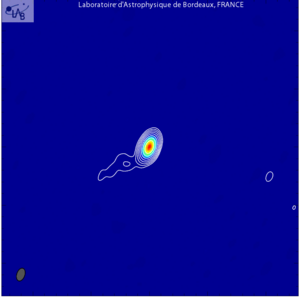

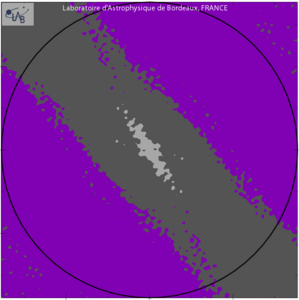

RDV90 (2011-12-20), X-band
| Flux (Jy) | Structure Index | Compactness | Map quality |
|---|---|---|---|
| 0.57 | 2.53 | 0.78 | 2331.42 |
S-band
Additional information
Download files for 2309+454

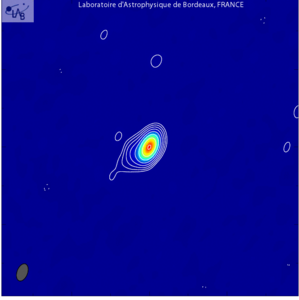

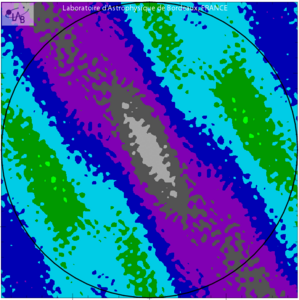

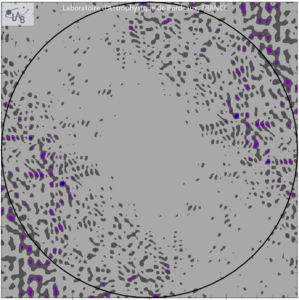

RDV90 (2011-12-20), S-band
| Flux (Jy) | Structure Index | Compactness | Map quality |
|---|---|---|---|
| 0.24 | 2.2 | 0.59 | 998.15 |
RV102
(2013-12-11)
X-band
Additional information
Download files for 2309+454

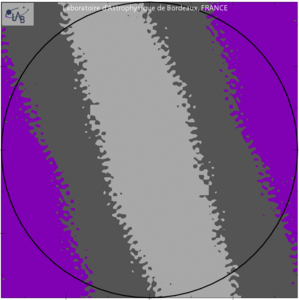

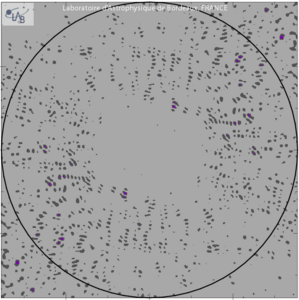

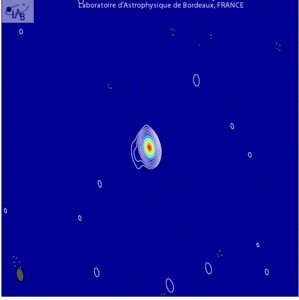

RV102 (2013-12-11), X-band
| Flux (Jy) | Structure Index | Compactness | Map quality |
|---|---|---|---|
| 0.69 | 2.09 | 0.88 | 2978.36 |
S-band
Additional information
Download files for 2309+454

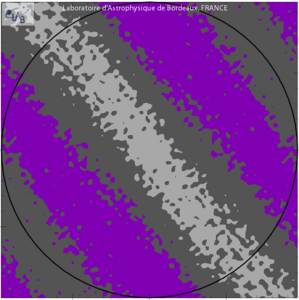

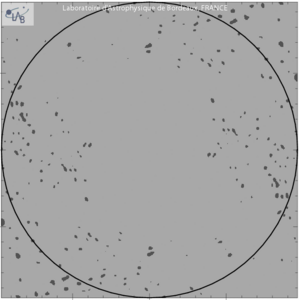

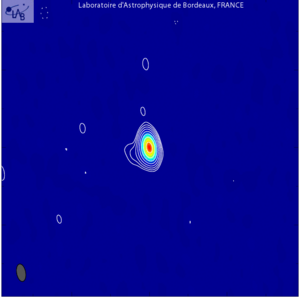

RV102 (2013-12-11), S-band
| Flux (Jy) | Structure Index | Compactness | Map quality |
|---|---|---|---|
| 0.35 | 1.72 | 0.82 | 1105.47 |
RV106
(2014-09-03)
X-band
Additional information
Download files for 2309+454

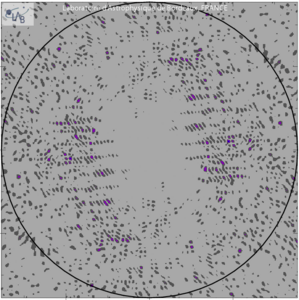

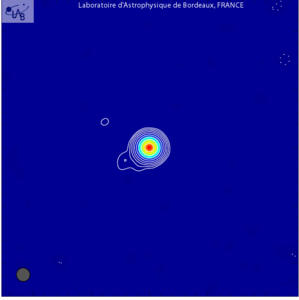

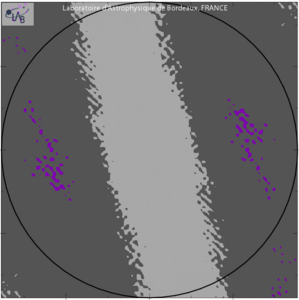

RV106 (2014-09-03), X-band
| Flux (Jy) | Structure Index | Compactness | Map quality |
|---|---|---|---|
| 0.67 | 2.23 | 0.87 | 2662.52 |
S-band
Additional information
Download files for 2309+454

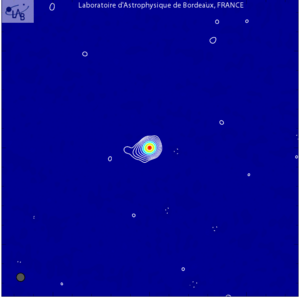

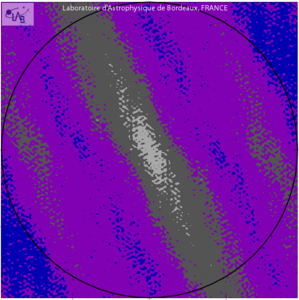

RV106 (2014-09-03), S-band
| Flux (Jy) | Structure Index | Compactness | Map quality |
|---|---|---|---|
| 0.34 | 1.95 | 0.76 | 992.15 |
RV110
(2015-03-25)
X-band
Additional information
Download files for 2309+454

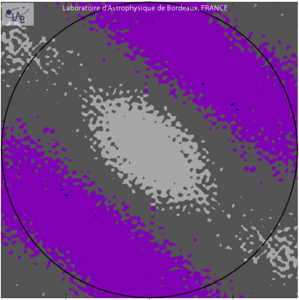

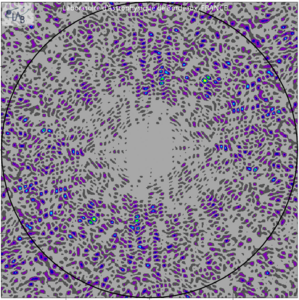

RV110 (2015-03-25), X-band
| Flux (Jy) | Structure Index | Compactness | Map quality |
|---|---|---|---|
| 0.49 | 2.76 | 0.82 | 1202.59 |
S-band
Additional information
Download files for 2309+454

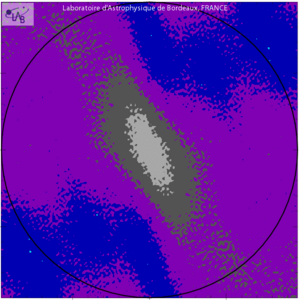

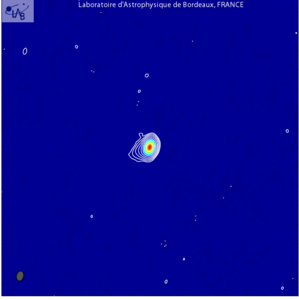

RV110 (2015-03-25), S-band
| Flux (Jy) | Structure Index | Compactness | Map quality |
|---|---|---|---|
| 0.43 | 1.83 | 0.74 | 1065.08 |
RV120
(2016-11-30)
X-band
Additional information
Download files for 2309+454

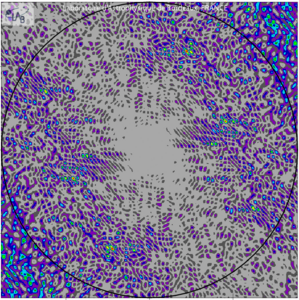

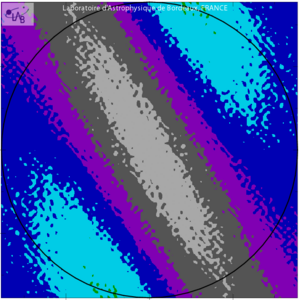

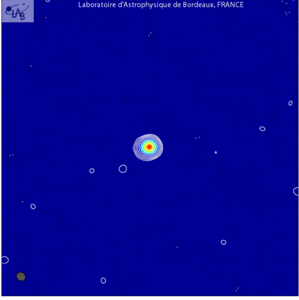

RV120 (2016-11-30), X-band
| Flux (Jy) | Structure Index | Compactness | Map quality |
|---|---|---|---|
| 0.52 | 2.94 | 0.71 | 1077.19 |
S-band
Additional information
Download files for 2309+454

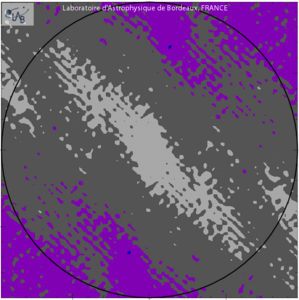

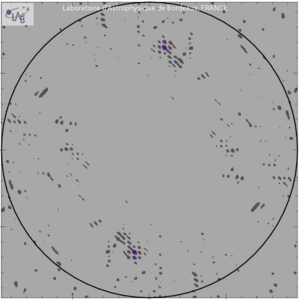

RV120 (2016-11-30), S-band
| Flux (Jy) | Structure Index | Compactness | Map quality |
|---|---|---|---|
| 0.38 | 1.8 | 0.85 | 1049.89 |
RV124
(2017-07-17)
X-band
Additional information
Download files for 2309+454

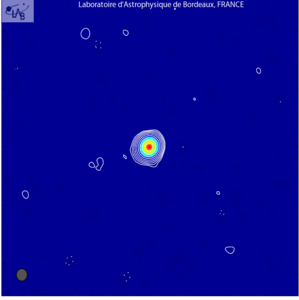

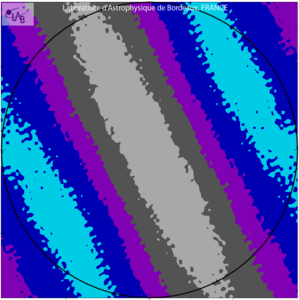

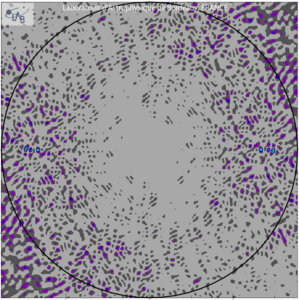

RV124 (2017-07-17), X-band
| Flux (Jy) | Structure Index | Compactness | Map quality |
|---|---|---|---|
| 0.62 | 2.43 | 0.74 | 1695.53 |
S-band
Additional information
Download files for 2309+454

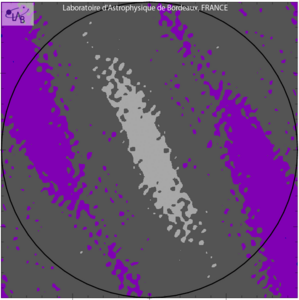

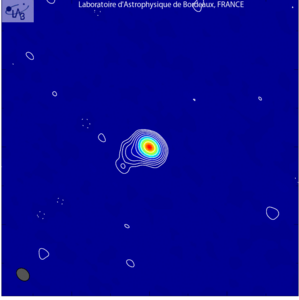

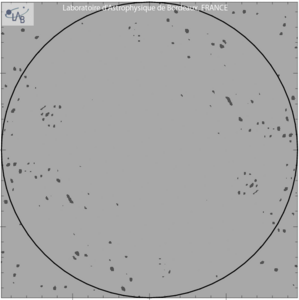

RV124 (2017-07-17), S-band
| Flux (Jy) | Structure Index | Compactness | Map quality |
|---|---|---|---|
| 0.39 | 1.68 | 0.83 | 1089.57 |
RV132
(2018-11-14)
X-band
Additional information
Download files for 2309+454

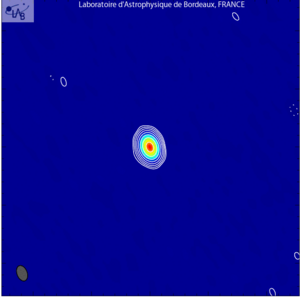

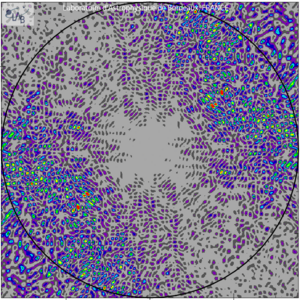

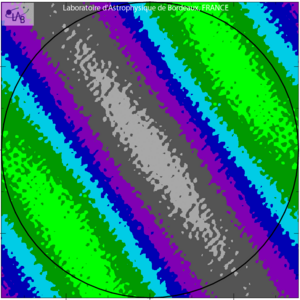

RV132 (2018-11-14), X-band
| Flux (Jy) | Structure Index | Compactness | Map quality |
|---|---|---|---|
| 0.45 | 3 | 0.63 | 1217.59 |
S-band
Additional information
Download files for 2309+454

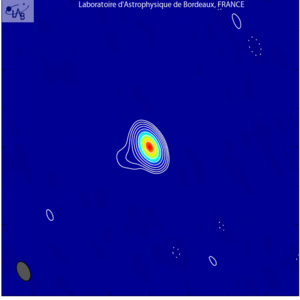

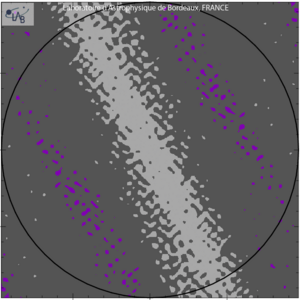

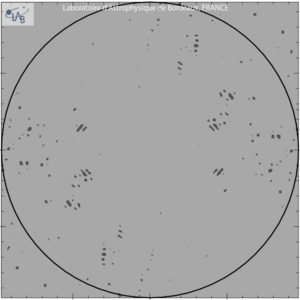

RV132 (2018-11-14), S-band
| Flux (Jy) | Structure Index | Compactness | Map quality |
|---|---|---|---|
| 0.49 | 1.72 | 0.86 | 1375.67 |
RV140
(2020-05-19)
X-band
Additional information
Download files for 2309+454

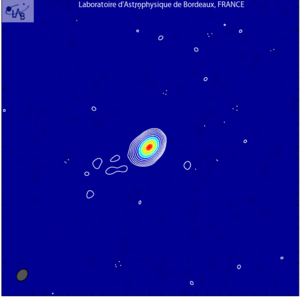

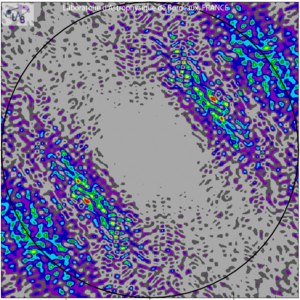

RV140 (2020-05-19), X-band
| Flux (Jy) | Structure Index | Compactness | Map quality |
|---|---|---|---|
| 0.48 | 2.96 | 0.53 | 1378.37 |
S-band
Additional information
Download files for 2309+454

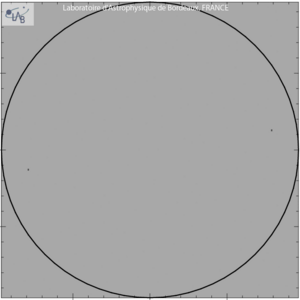

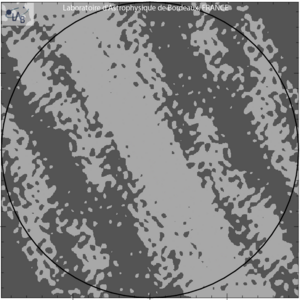

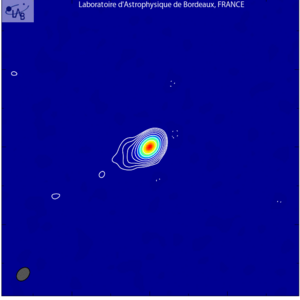

RV140 (2020-05-19), S-band
| Flux (Jy) | Structure Index | Compactness | Map quality |
|---|---|---|---|
| 0.54 | 1.16 | 0.9 | 1503.18 |
RV146
(2021-03-24)
X-band
Additional information
Download files for 2309+454

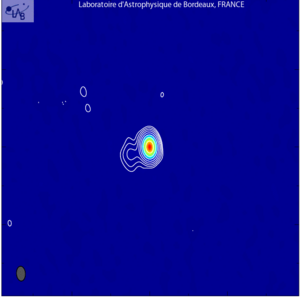

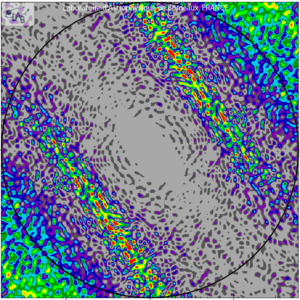

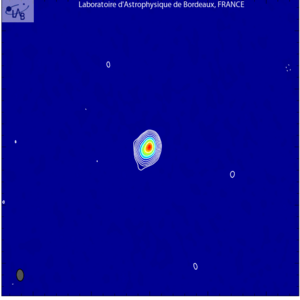

RV146 (2021-03-24), X-band
| Flux (Jy) | Structure Index | Compactness | Map quality |
|---|---|---|---|
| 0.29 | 3.21 | 0.53 | 1053.01 |
S-band
Additional information
Download files for 2309+454

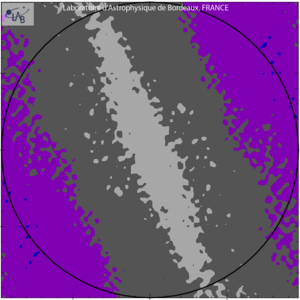

RV146 (2021-03-24), S-band
| Flux (Jy) | Structure Index | Compactness | Map quality |
|---|---|---|---|
| 0.32 | 1.46 | 0.85 | 1221.6 |
RV150
(2021-11-24)
X-band
Additional information
Download files for 2309+454

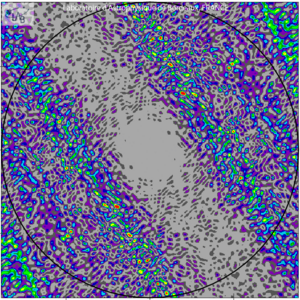

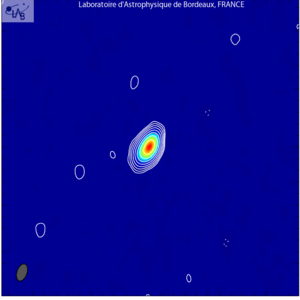

RV150 (2021-11-24), X-band
| Flux (Jy) | Structure Index | Compactness | Map quality |
|---|---|---|---|
| 0.24 | 3.19 | 0.54 | 1191.56 |
S-band
Additional information
Download files for 2309+454

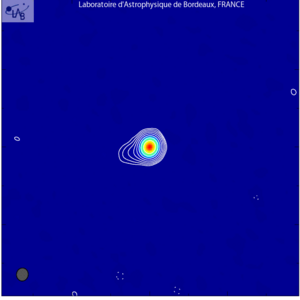

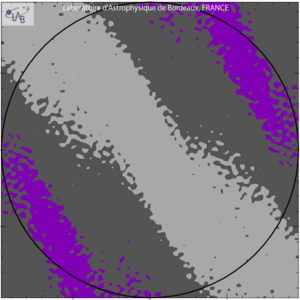

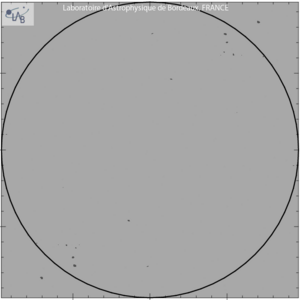

RV150 (2021-11-24), S-band
| Flux (Jy) | Structure Index | Compactness | Map quality |
|---|---|---|---|
| 0.39 | 1.35 | 0.88 | 1638.41 |
RV152
(2022-02-16)
X-band
Additional information
Download files for 2309+454

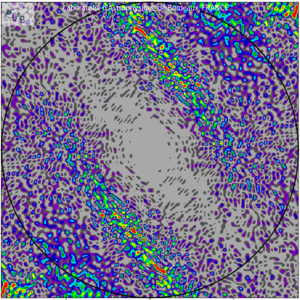

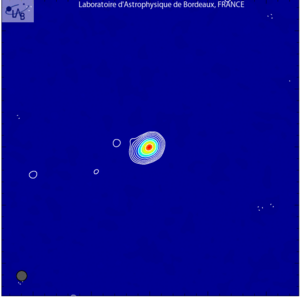

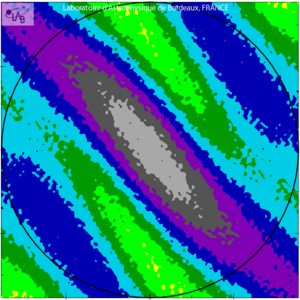

RV152 (2022-02-16), X-band
| Flux (Jy) | Structure Index | Compactness | Map quality |
|---|---|---|---|
| 0.24 | 3.17 | 0.61 | 1098.33 |
S-band
Additional information
Download files for 2309+454

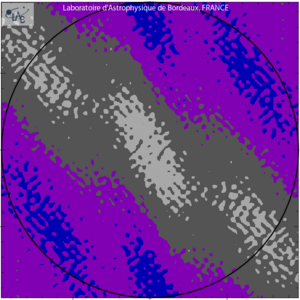

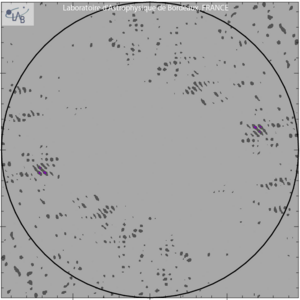

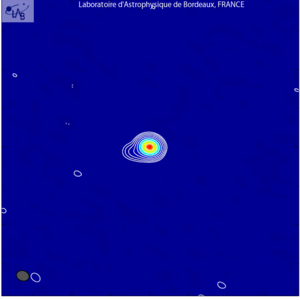

RV152 (2022-02-16), S-band
| Flux (Jy) | Structure Index | Compactness | Map quality |
|---|---|---|---|
| 0.31 | 1.8 | 0.8 | 1159.48 |
RV154
(2022-07-05)
X-band
Additional information
Download files for 2309+454

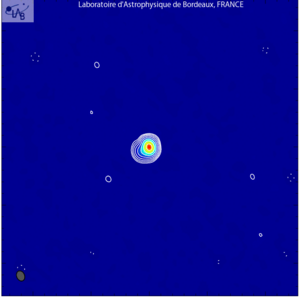

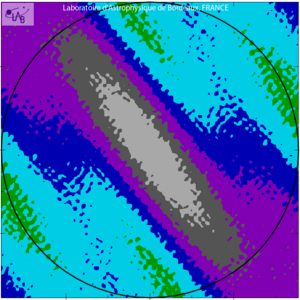

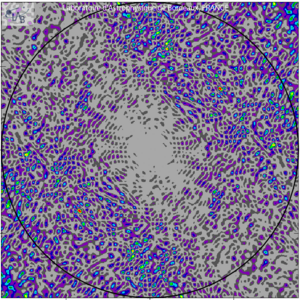

RV154 (2022-07-05), X-band
| Flux (Jy) | Structure Index | Compactness | Map quality |
|---|---|---|---|
| 0.23 | 3.04 | 0.63 | 982.29 |
S-band
Additional information
Download files for 2309+454

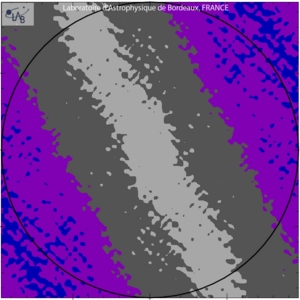

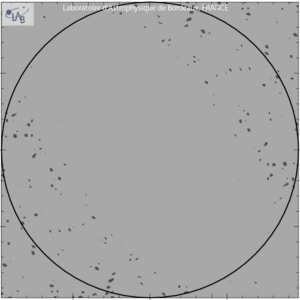

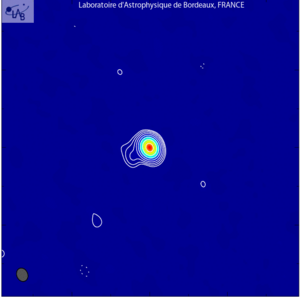

RV154 (2022-07-05), S-band
| Flux (Jy) | Structure Index | Compactness | Map quality |
|---|---|---|---|
| 0.3 | 1.64 | 0.85 | 1235.57 |
